Puma 2100 Series
DN Solutions (formerly Doosan) Puma 2100 series lathes
Puma 2100 Series Description
Puma 2100 lathes have raised the bar for turning performance and provide manufacturers with increased accuracies and repeatability’s, superior cutting performance and greater process reliability.
The box guide-way machines have an 8″ chuck/65mm bar capacity, and are available in two bed lengths – 545mm and 785mm.
There are six different models in each bed length and manufacturers can select Puma 2100 machines with sub-spindles, driven tools, C-axes and Y-axes.
In addition to their impressive technical specifications, Puma 2100 lathes are supplied by Mills with: Automatic Tool Setters, Parts Catchers, tailstocks (for non- sub-spindle machines), and the Manual Guide/Conversational Programming System, as standard.
Product specifications

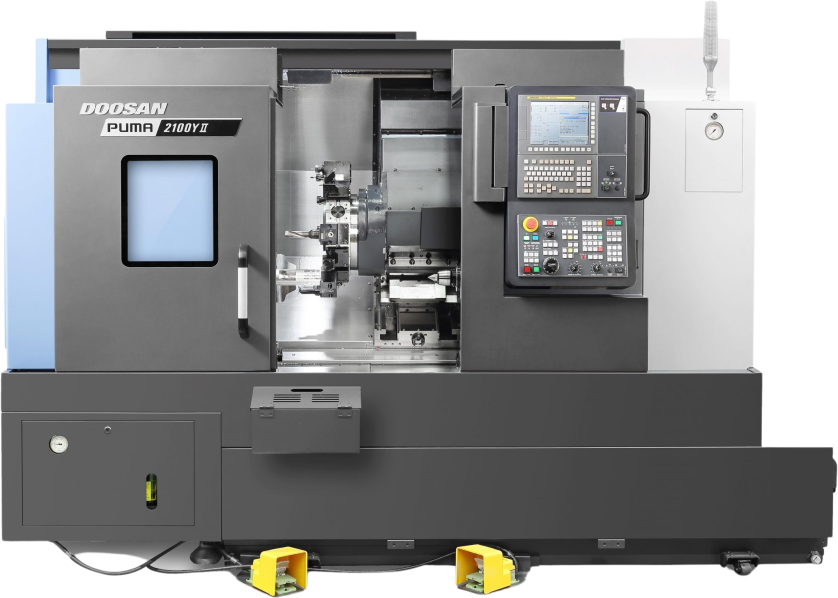

Puma 2100Y II
CNC Horizontal Single Turret Lathes
- 8” chuck
- 22kW/5000rpm spindle
- 406 mm max turning diameter
Puma 2100SY II
CNC Horizontal Single Turret Lathes
- 8” chuck
- 22kW/5000rpm spindle
- 406 mm max turning diameter
Puma 2100MS
CNC Horizontal Single Turret Lathes
- 8” chuck
- 18.5kW/4500rpm spindle
- 406 mm max turning diameter
Puma 2100M
CNC Horizontal Single Turret Lathes
- 8” chuck
- 65mm bar diameter
- 18.5kW/4500rpm spindle
Puma 2100LY II
CNC Horizontal Single Turret Lathes
- 8” chuck
- 65mm bar diameter
- 22kW/5000rpm spindle
Puma 2100LSY II
CNC Horizontal Single Turret Lathes
- 8” chuck
- 65mm bar diameter
- 22kW/5000rpm spindle

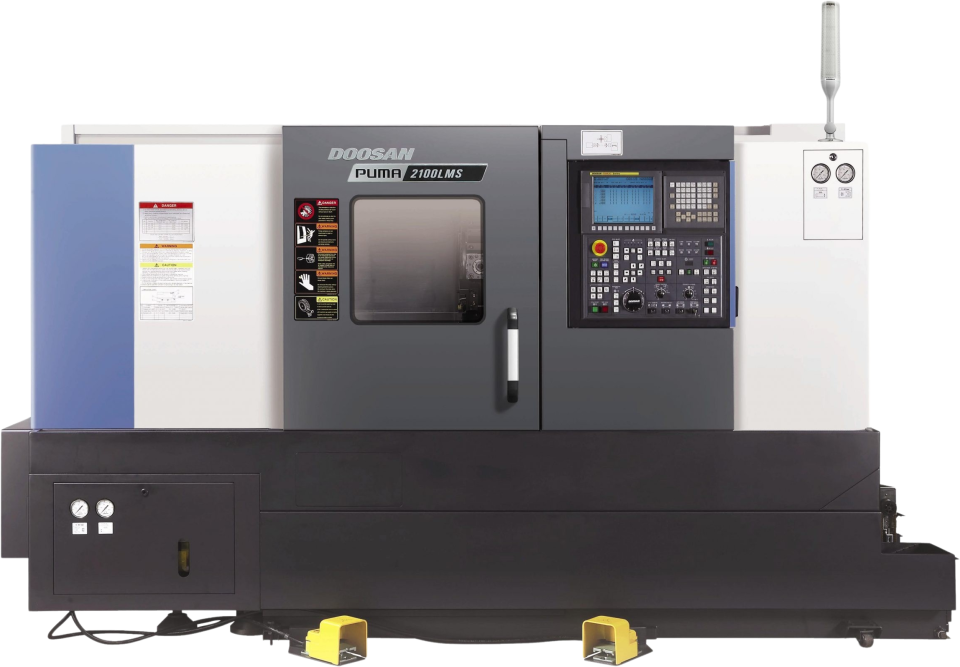

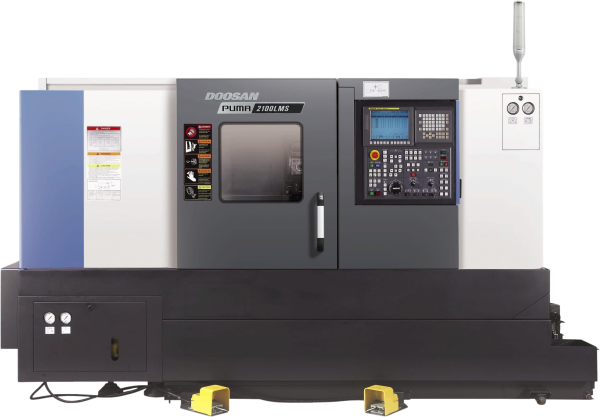

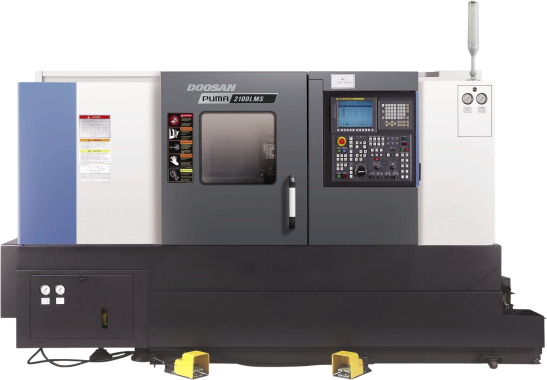

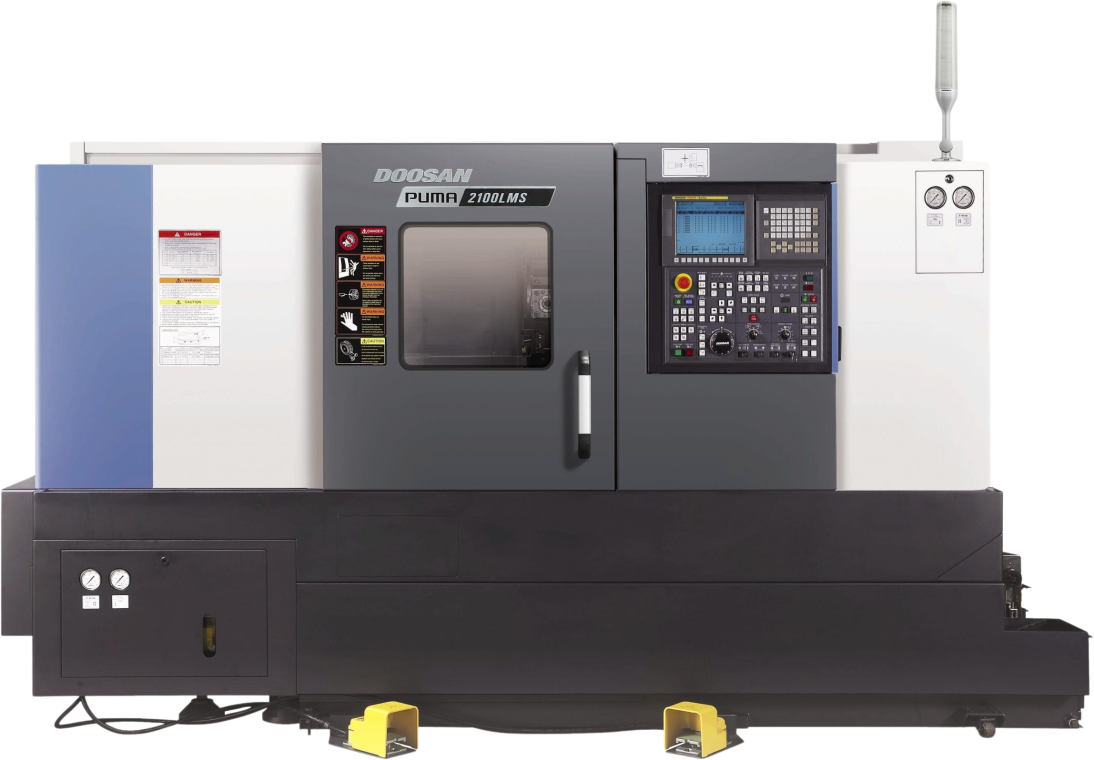

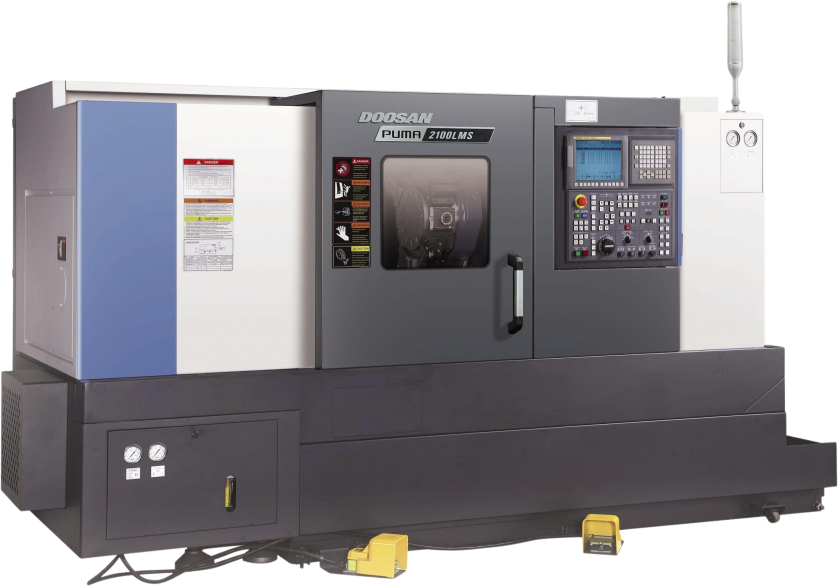

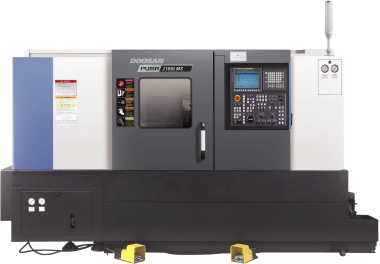

Puma 2100LMS
CNC Horizontal Single Turret Lathes
- 8” chuck
- 18.5kW/4500rpm spindle
- 406 mm max turning diameter
Puma 2100LM
CNC Horizontal Single Turret Lathes
- 8” chuck
- 65mm bar diameter
- 18.5kW/4500rpm spindle
Puma 2100L
CNC Horizontal Single Turret Lathes
- 8” chuck
- 65mm bar diameter
- 18.5kW/4500rpm spindle
Puma 2100
CNC Horizontal Single Turret Lathes
- 8” chuck
- 65mm bar diameter
- 18.5kW/4500rpm spindle
Related Series from CNC Horizontal Single Turret Lathes
- Box guide-way design
- 8″, 10″ or 12″ chuck
- 65mm, 76mm or 102mm bar capacity
- Driven tools (5.5kW/5000rpm)
- Fanuc or Siemens control
- 10″/12″ chuck / 76mm bar capacity
- Driven tooling (7.5kW/5000rpm)
- 105mm Y-axis stroke
- Long bed models available
- 12″ chuck / 102mm bar capacity
- Driven tools (7.8kW/5000rpm)
- 130mm Y-axis stroke
- Long bed models available
