Puma TT Series
DN Solutions (formerly Doosan) Twin-spindle/Twin-turret machines
Puma TT Series Description
The DN Solutions range of Twin-Turret/Twin-Spindle multi-axis turning centres combine Y-axis functionality, twin spindles and an upper and lower turret to maximise productivity. There are two models in the range – the TT 1800SY and the larger TT 2500SY.
The TT 1800SY has an 8″chuck/65mm bar capacity, with both spindles providing 22kW 5,000rpm power and performance, and both turrets offering 12/24 positions. The machine has Driven Tools (5.5kW 5,000rpm) and ±50mm Y-axis capability.
The larger TT 2500SY is similarly impressive and is equipped with a 10″ chuck /76mm bar capacity, with both spindles providing 26kW 3,500rpm power and performance, and both turrets offering 12 positions. The machine has Driven Tools (5.5kW 4,000rpm) and ±60mm Y-axis capability.
Product specifications

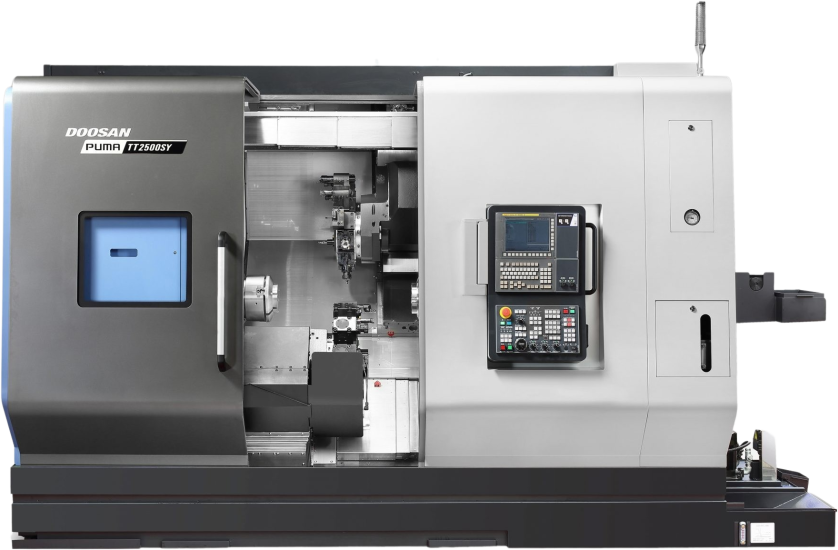

Puma TT2500SY
Twin Turret Horizontal CNC Lathes
- 10” chuck
- 26kW/3500rpm spindle
- 390 mm max turning diameter
Puma TT2500MS
Twin Turret Horizontal CNC Lathes
- 10” chuck
- 26kW/3500rpm spindle
- 350 mm max turning diameter
Puma TT2100SYYB
Twin Turret Horizontal CNC Lathes
- 10” chuck
- 81mm bar diameter
- 22kW/3500rpm spindle
Puma TT2100SYY
Twin Turret Horizontal CNC Lathes
- 8” chuck
- 65mm bar diameter
- 25kW/5000rpm spindle

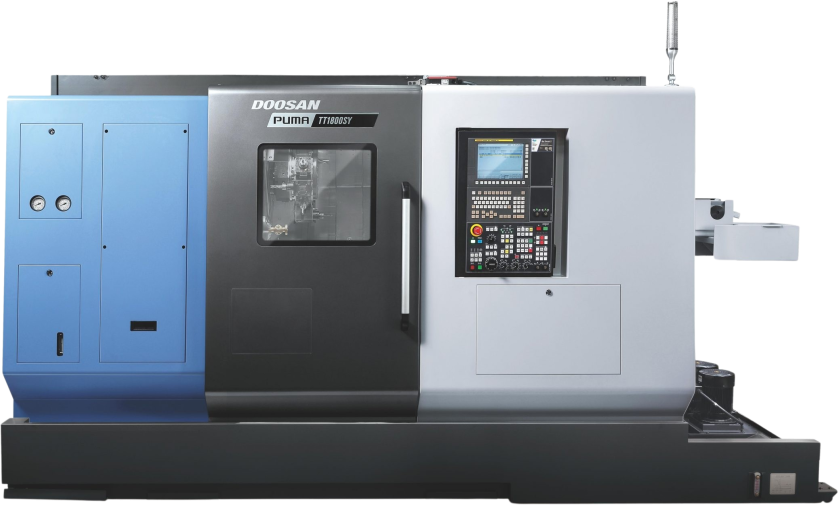

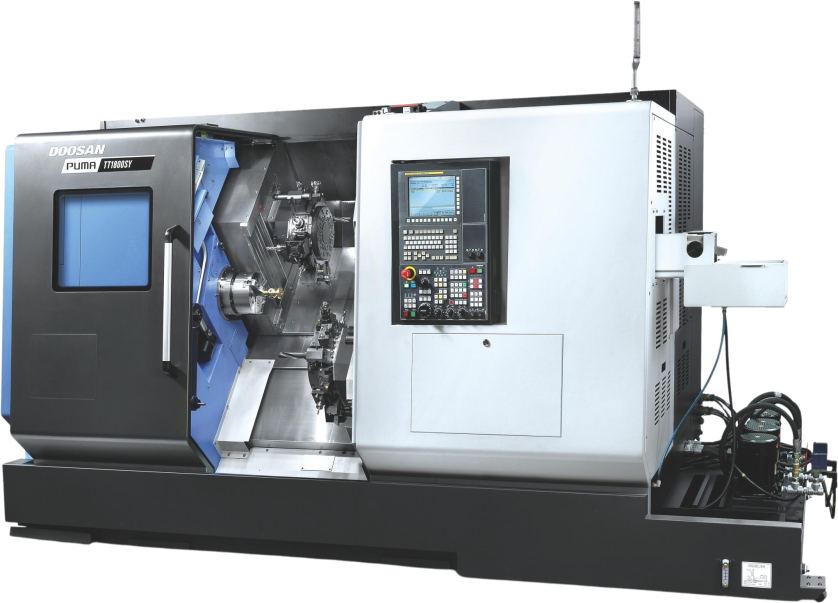

Puma TT1800SY
Twin Turret Horizontal CNC Lathes
- 8” chuck
- 65mm bar diameter
- 22kW/5000rpm spindle
Puma TT1800MS
Twin Turret Horizontal CNC Lathes
- 8” chuck
- 65mm bar diameter
- 22kW/5000rpm spindle
Puma TT1300SYYB
Twin Turret Horizontal CNC Lathes
- 6” chuck
- 51mm bar diameter
- 15kW/6000rpm spindle

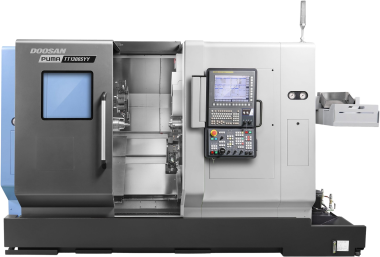

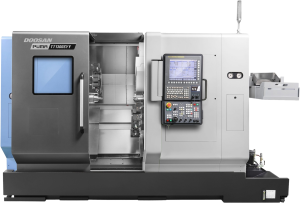

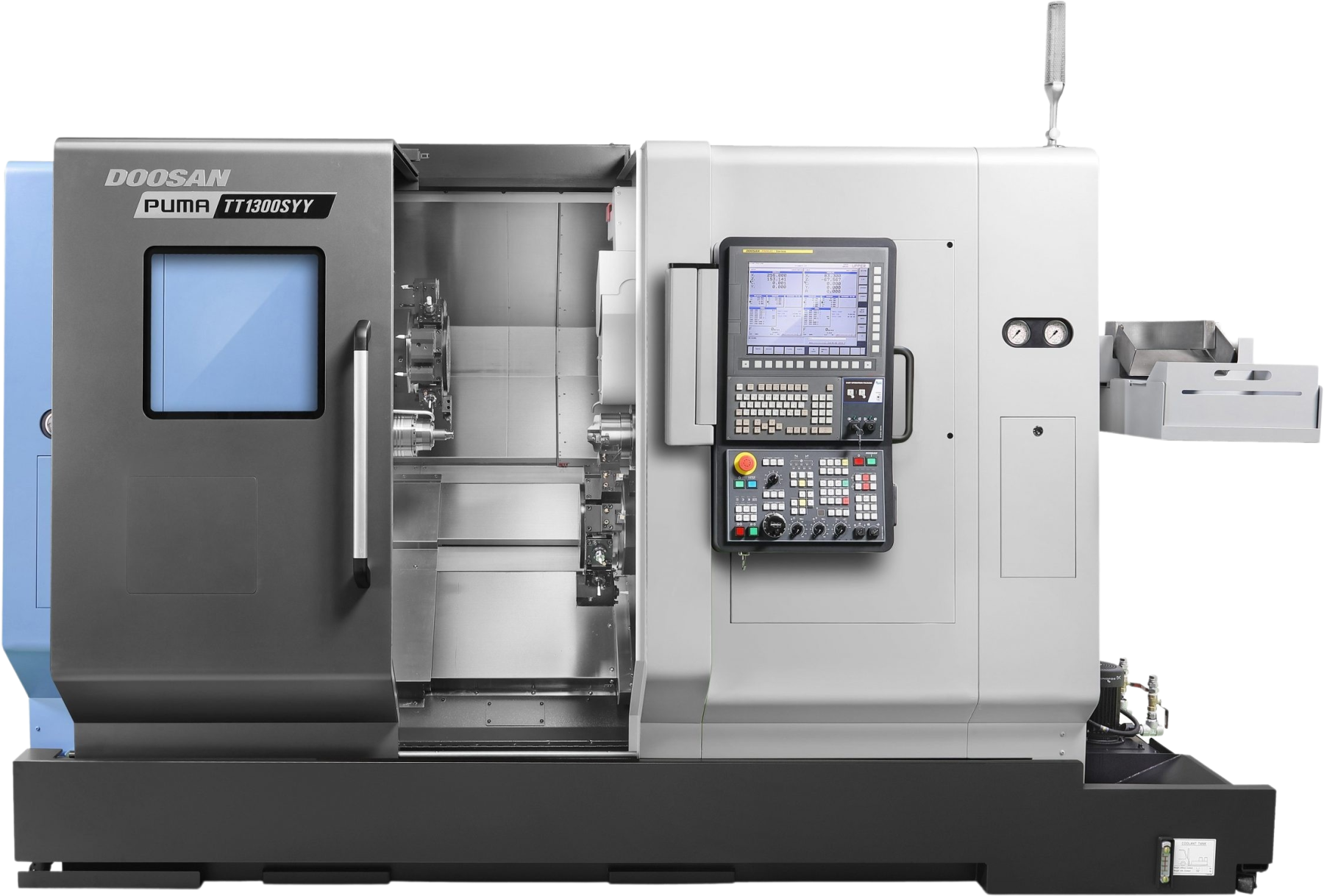

Puma TT1300SYY
Twin Turret Horizontal CNC Lathes
- 5” chuck
- 42mm bar diameter
- 11kW/6000rpm spindle
Puma TT1300SYB
Twin Turret Horizontal CNC Lathes
- 6” chuck
- 51mm bar diameter
- 15kW/6000rpm spindle
Puma TT1300SY
Twin Turret Horizontal CNC Lathes
- 5” chuck
- 42mm bar diameter
- 11kW/6000rpm spindle
Related Case Studies
Agility and adaptability: the keys to business growth, success and longevity
TT1800SY Twin Turret Horizontal CNC Lathe
Precision subcontract specialists Standish Engineering Co invest in a DN Solutions twin-pallet vertical machining centre and a DN Solutions twin-turret, twin-spindle turning centre, helping the company respond to customers’ changing needs and requirements with speed and efficiency.
On a journey toward sustainable machining
Puma TT1800SY Twin Turret Horizontal Lathe
Sustainable machining pioneers MCS invest in a new DN Solutions Puma 2600SY II sub-spindle, Y-axis lathe, and a Puma TT1800SY twin-turret turning centre for improved reliability and performance, and to expand capacity at their Redditch manufacturing centre.
Well prepared – for all eventualities.
Doosan Puma TT2100SYY Twin Turret Horizontal CNC Lathe
Tyne & Wear based Washington Components, a subcontract specialist serving the oil & gas subsea sector, has invested in new Doosan machine tools. The 1st acquisition, a Puma TT 2100 SYY twin-turret, twin-spindle turning centre demonstrates the depth and sophistication of machining operations required of subcontractors operating in the subsea, off-shore & wind energy markets.
Related Series from Twin Turret Horizontal CNC Lathes
- Upper and lower turret: 12/8 position
- Long bed and driven tool models available
- 18.5kW/3,500rpm spindles
- Up to 170mm max turning length
- Up to 360mm maximum turning diameter
- Gantry loader models available
