DNM Series
The DN Solutions (formerly Doosan) DNM series is one of the most popular and versatile range of vertical machining centres available.
DNM Series Description
So long as you don’t have heavy duty requirements, the DNM vertical machining center series is almost certain to have the right machine for your needs. These versatile machines include roller guideways on a newly-designed machine base, and with 40 and 50 taper spindle options, the DNM series has an option for almost every requirement.
Product specifications
DNM 6700
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 40ea tool stations
- 2597 x 3350 x 3120 mm (LxWxH)
DNM 750L/50 II
Vertical Machining Centres
- 22kW/12000rpm spindle
- 60ea tool stations
- 3435 x 4900 x 3385 mm (LxWxH)
DNM 750/50 II
Vertical Machining Centres
- 22kW/12000rpm spindle
- 60ea tool stations
- 3480 x 3850 x 3370 mm (LxWxH)
DNM 750 L II
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 3480 x 4900 x 3170 mm (LxWxH)
DNM 750 II
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 3480 x 3850 x 3170 mm (LxWxH)
DNM 6700XL
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 2597 x 3800 x 3120 mm (LxWxH)
DNM 6700L
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 2597 x 3800 x 3120 mm (LxWxH)
DNM 6700
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 2597 x 3350 x 3120 mm (LxWxH)

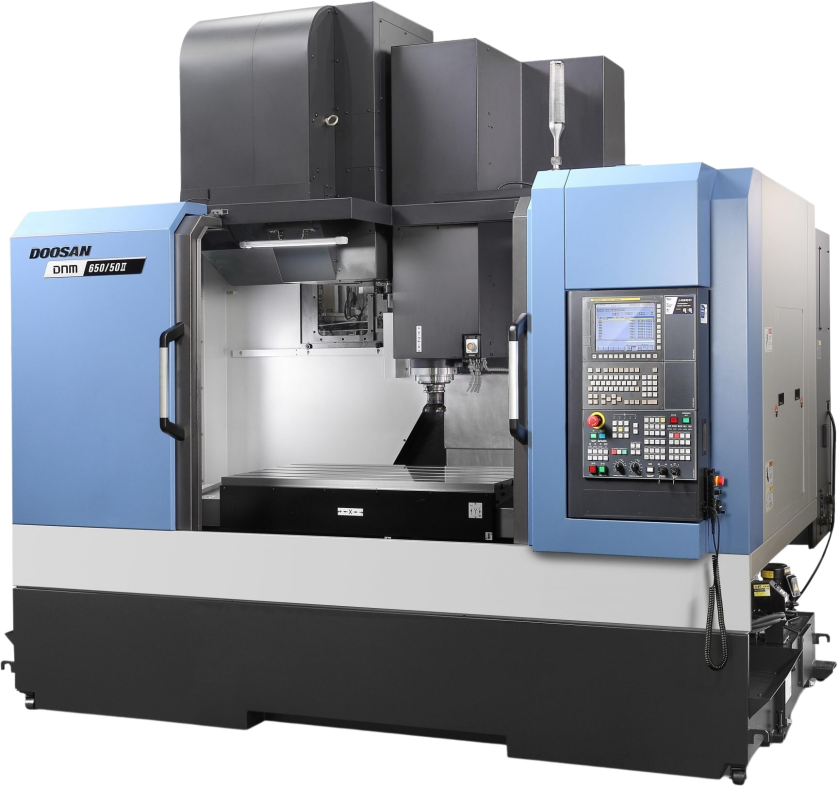

DNM 650/50 II
Vertical Machining Centres
- 22kW/12000rpm spindle
- 24ea tool stations
- 2740 x 3350 x 3250 mm (LxWxH)
DNM 5700
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 2413 x 3100 x 2985 mm (LxWxH)

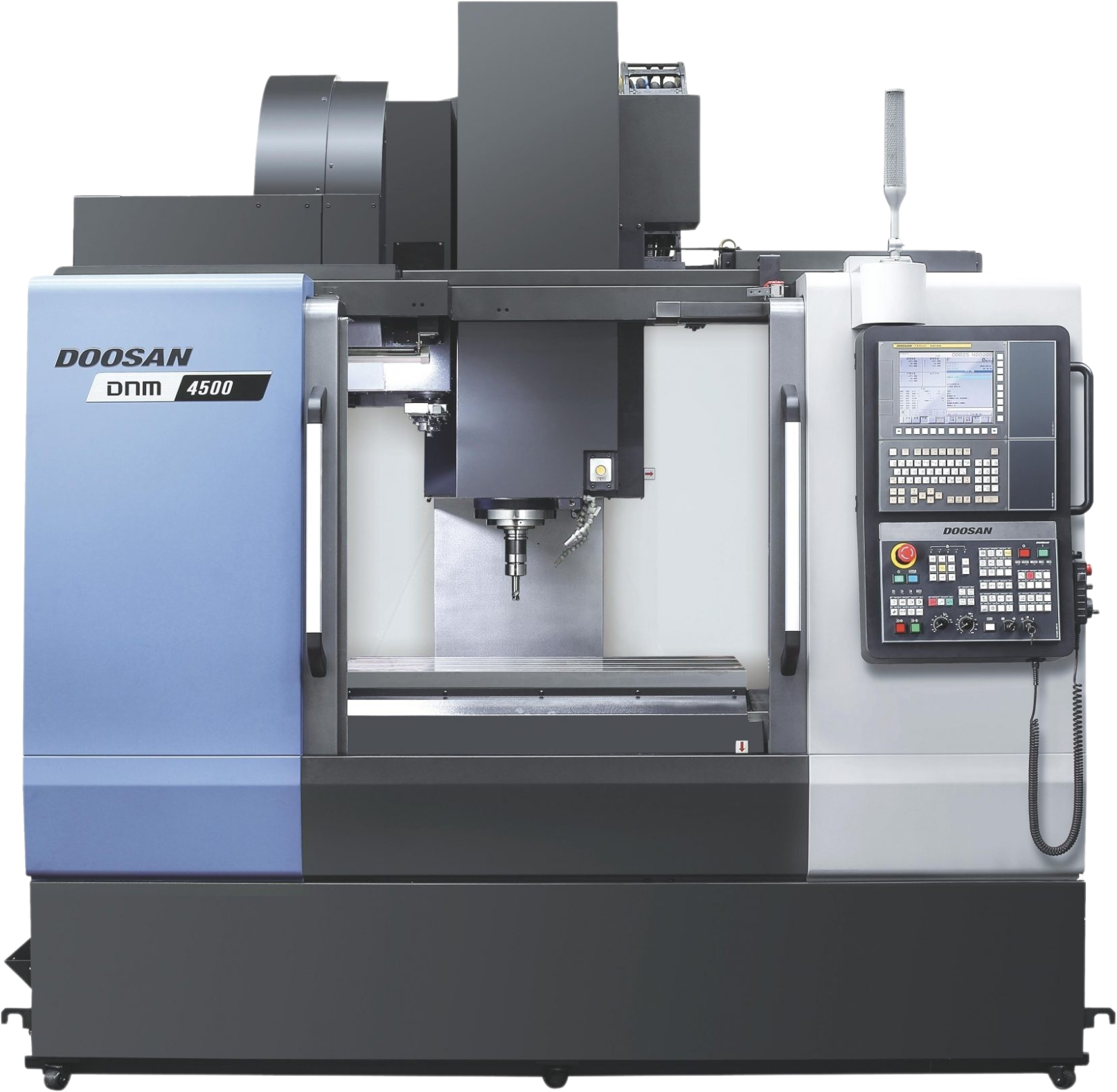

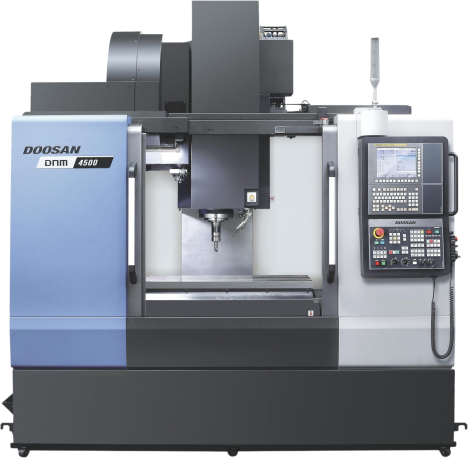

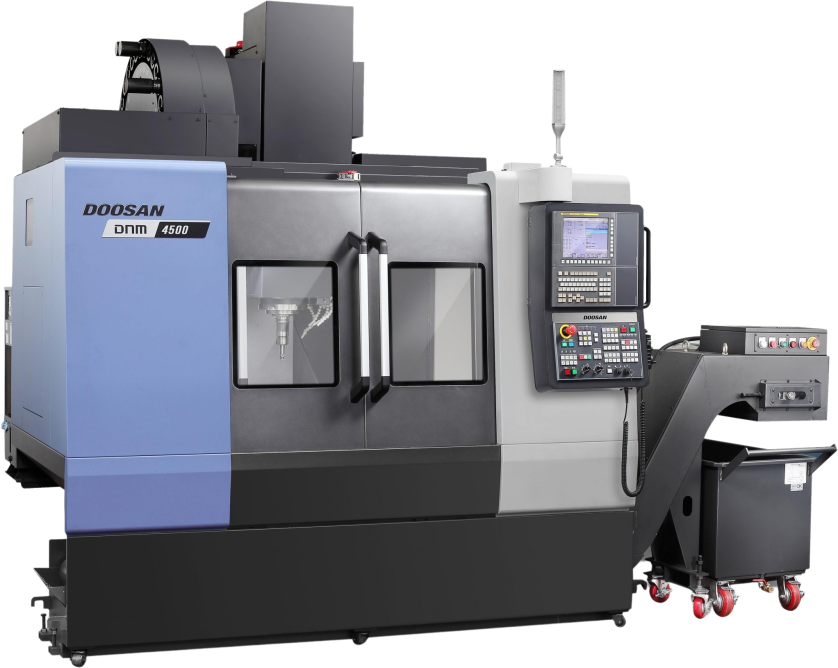

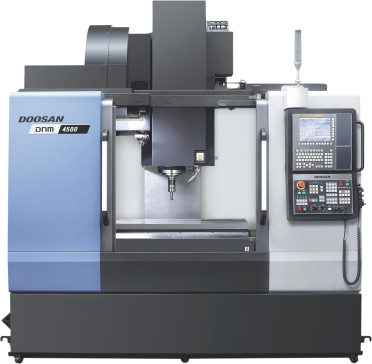

DNM 4500
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 60ea tool stations
- 2160 x 2465 x 2985 mm (LxWxH)
DNM 4000
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 20ea tool stations
- 2858 x 1650 x 2753 mm (LxWxH)
Compatible Control Systems
The DNM Series is compatible with Fanuc, Siemens and Heidenhain.
Related Case Studies
Milling phenomena
DNM Vertical Machining Centres
DN Solutions DNM 3-axis vertical machining centres provide component manufacturers with excellent cutting performance, fast processing speeds, guaranteed accuracies and unrivalled machining flexibility.
High precision manufacturing with fast processing speeds
DNM 5700 Vertical Machining Centre
Leading manufacturing specialist, AEP Precision Engineering, invests in a new DN Solutions’ high-performance vertical machining centre to improve process efficiencies and productivity.
Going for sustainable growth!

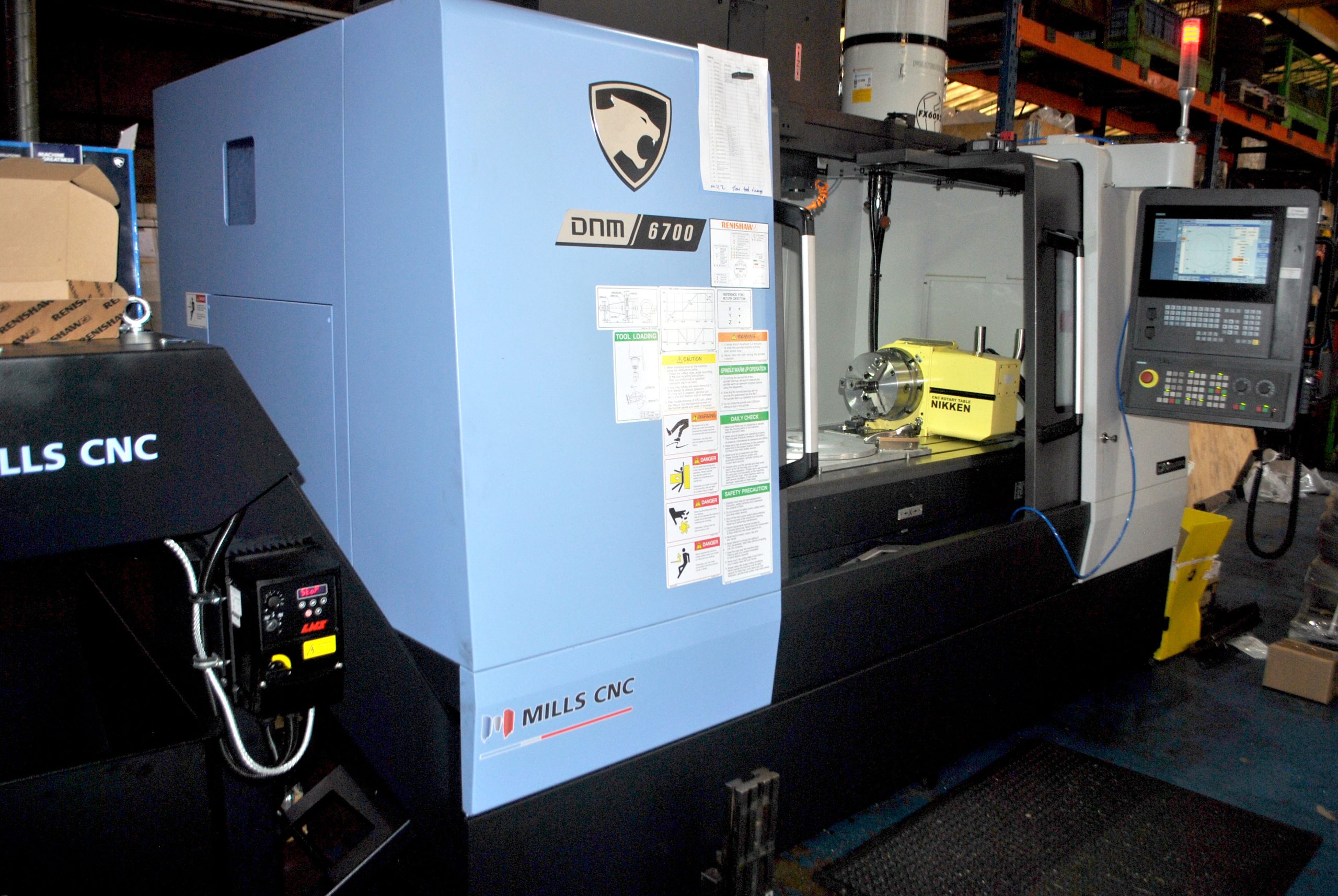

DNM 6700 Vertical Machining Centre
